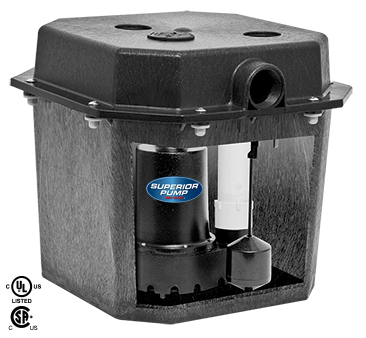

Superior Pump 92017 remote drain pump kit

Pump Features

• Model 92341 sump pump
• 1/3 hp continuous duty, thermally protected split capacitor motor
• Vertical float switch
• Rugged thermoplastic construction
• Stainless steel impeller
• Handles 3/8" solids

Basin Features

• Corrosion resistant structural foam construction
• Molded reusable PVC seal
• 6 gallon capacity
• Size: 15" x 13-1/2"
• 1-1/2" inlet, discharge & vent

Check Valve Features

• Full flow design - 99509
• ABS construction
• 1-1/2 MPT inlet
• 1-1/4" barb or 1-1/2" slip outlet



	92341 Pump

	Basin

	Check Valve

Performance
HEAD	0'	5'	10'	15'	20'	25'
GPM	46	36	30	25	12	1
GPH	2760	2160	1800	1500	720	60




	Battery Backup		Alarms



	Every Superior Pump comes with a detailed owner’s manual. The manual includes installation instructions, tips on pump maintenance, special warnings as well as warranty information. It is highly recommended that you read and understand the complete manual. Click here for a copy of the pre-assembled kit manual. If you have any questions please contact customer support.
