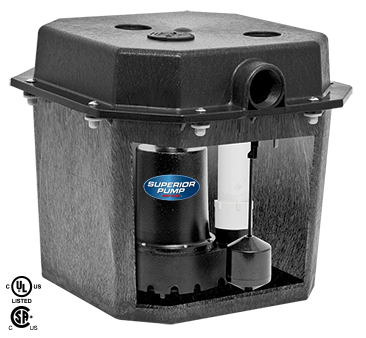

Superior Pump 92051 remote drain pump kit

Pump Features

• Model 92541 sump pump
• 1/2 hp continuous duty, thermally protected split capacitor motor
• Vertical float switch
• Rugged thermoplastic construction
• Stainless steel impeller
• Handles 3/8" solids

Basin Features

• Corrosion resistant structural foam construction
• Molded reusable PVC seal
• 6 gallon capacity
• Size: 15" x 13-1/2"
• 1-1/2" inlet, discharge & vent

Check Valve Features

• Full flow design - 99509
• ABS construction
• 1-1/2 MPT inlet
• 1-1/4" barb or 1-1/2" slip outlet



	92541 Pump

	Basin

	Check Valve

Performance
HEAD	0'	5'	10'	15'	20'	25'
GPM	55	49	40	29	18	8
GPH	3300	2940	2400	1740	1080	480




	Battery Backup		Alarms



	Every Superior Pump comes with a detailed owner’s manual. The manual includes installation instructions, tips on pump maintenance, special warnings as well as warranty information. It is highly recommended that you read and understand the complete manual. Click here for a copy of the pre-assembled kit manual. If you have any questions please contact customer support.
