| Pre-assembled kit is ready to install |
| Custom kits available upon request |
 |
| Click on image for high resolution picture |
|
- Kit Features
- Pump Features
- Performance
- Accessories
- Manual

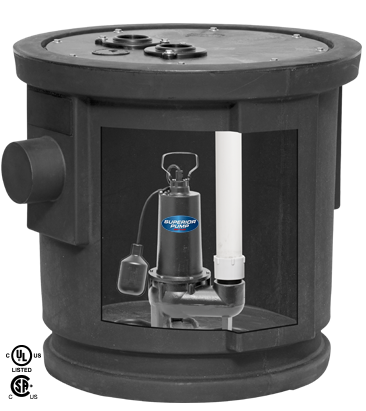

| Basin Features |
• Tough polyethylene construction
• Gasket sealed liquid and airtight cover with 8 bolts
• 2” discharge and vent
• Built-in anti float collar prevents basin from floating
• Molded torque stops prevent pump from turning
• Integrated 360° lifting handle
• 45 gallon capacity |
| Cover Features |
• 18” Premium cover
• 18” Premium split lid cover |
| Check Valve Features |
• Heavy duty rubber boots
• Stainless steel clamps
• Full flow design
• 2" connections
|
|
|
| Features |
• Continuous duty, thermally protected - split capacitor motor
• Pumps will lift water up to 25' of vertical height
• Rugged cast iron construction
• Easily handles 2" solids
• Large 2" discharge for high capacity pumping
• Thermoplastic, non-clogging vortex impeller |
| Technical Specifications |
| |
HP |
1/2 |
|
| |
Amps |
7.6 |
|
| |
Construction |
Cast Iron |
|
| Switch Type |
Vertical |
| |
Discharge Size |
2" |
|
| |
|
| |
Cord Length |
10' |
|
| |
Solids Handling |
2" |
|
| |
Impeller Type |
Thermoplastic, non-clogging vortex |
|
| Warranty |
1 Year |
| Performance |
| HEAD |
0' |
5' |
10' |
15' |
20' |
25' |
| GPM |
80 |
68 |
60 |
44 |
13 |
2 |
| GPH |
4800 |
4080 |
3600 |
2640 |
780 |
120 |
|
| |
 |
|
Every Superior Pump comes with a detailed owner’s manual. The manual includes installation instructions, tips on pump maintenance, special warnings as well as warranty information. It is highly recommended that you read and understand the complete manual.
Click here for a copy of the
sewage kit manual.
If you have any questions please contact customer support.
|
| |
|
|
